Description

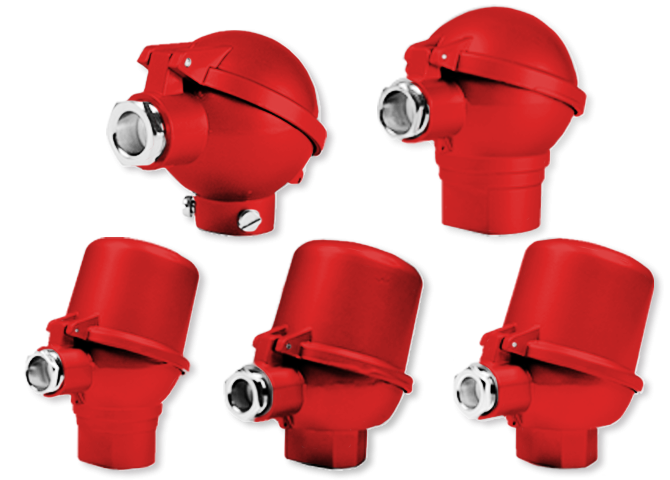

Connection heads are integral elements of temperature sensors, available also as separate components. They are made primarily of aluminium alloys, but stainless steel, polyamide or noryl heads are also available. Wide range of connection heads allows head selection according to client requirements and application specifications.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Contact form
|
NAA – body and cover material: aluminium alloy – coating: polyester lacquer – operating temperature: -40÷100ºC oil-proof rubber seal -40÷150ºC silicone seal – inner dimensions [mm]: ø42x28 – protection tube entry: M24x1,5 |

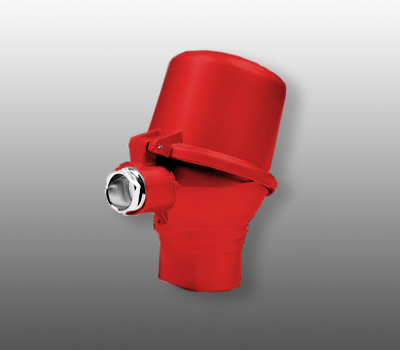

DAAW – body and cover material: aluminium alloy – coating: polyester lacquer – operating temperature: -40÷100ºC oil-proof rubber seal -40÷150ºC silicone seal – connection head height [mm]: 127 – protection tube entry [mm]: ø22,5; 32,5 |
|

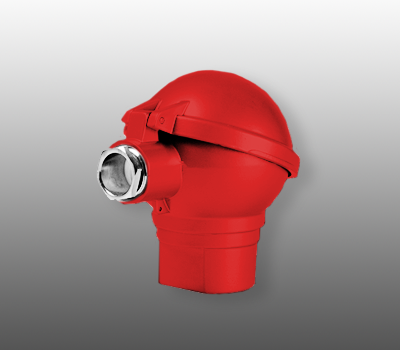

DAA – body and cover material: aluminium alloy – coating: creodur lacquer – operating temperature: -40÷100ºC oil-proof rubber seal -40÷150ºC silicone seal – inner dimensions [mm]: ø56x22 or ø42x40 – protection tube entry: ø22,5; ø32,5 mm |
DANAW – body and cover material: aluminium alloy – coating: creodur lacquer – operating temperature: -40÷100ºC oil-proof rubber seal -40÷150ºC silicone seal – connection head height [mm]: 114 – protection tube entry: M24x1,5 |
|

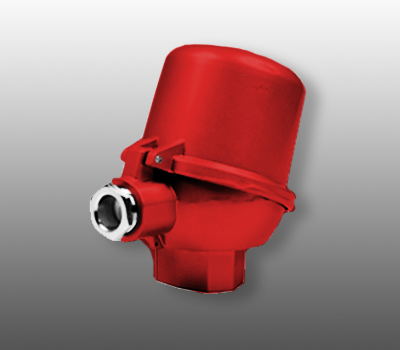

DANAWwin – cover with window – coating: polyester lacquer – operating temperature: -40÷80ºC – connection head height [mm]: ~114 – protection tube entry: M10x1 |
Connection heads
Additional heads connecting sensors used in the production company Limatherm Sensor.
| NAA | DAA | DANAWwin |
|
|
|
|
| DAAW | DANAW |
|
|
|
