Description

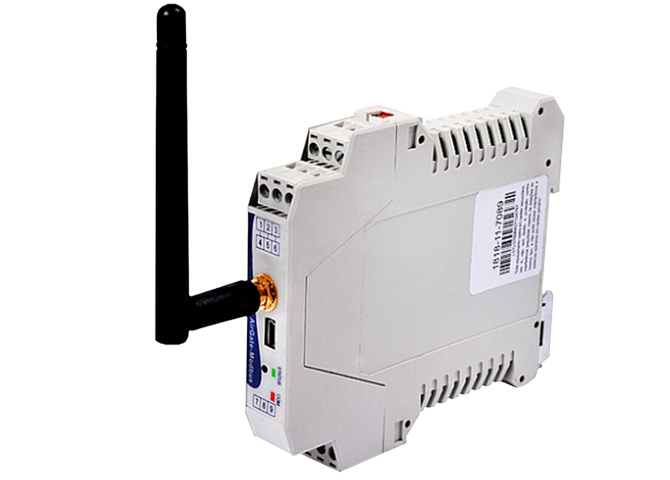

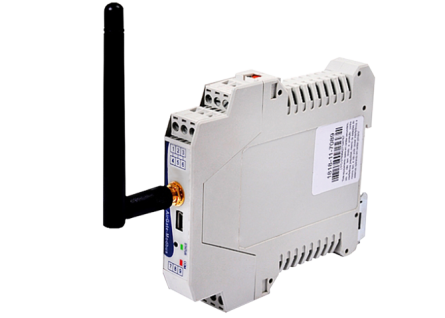

AirGate-Modbus is a wireless multifunctional gateway that allows the transparent and easy insertion of wireless branches into existing wired RS485 networks. The AirGate-Modbus has four operation modes, Modbus Master, multiplexer, USB RS485 converter and simple wireless RS485 extension. A proprietary protocol based on IEEE 802.15.4 facilitates operation in star mode, allowing the connection of several wireless segments to an existing Modbus RS-485 network.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: export@limathermsensor.pl

Do you have a question?
General Cooperating devices Contact form
Characteris
  • up to 16 operating channels
  • range up to 1000 m
  • RF data rate up to 250 Kbps
  • operating band ISM 2.4 GHz (IEEE 802.15.4)
  • AES-CBC-128 data cryptography
  • star network topology operation



Specifications

  • antenna gain 2 dBi
  • 4 Work mode: RS485-Master, RS485-Slave, USB-Master, Multi-Master
  • power supply: 10÷35V DC

Temperature sensors can cooperate with the devices registering parameters of the controlled process.
