Description

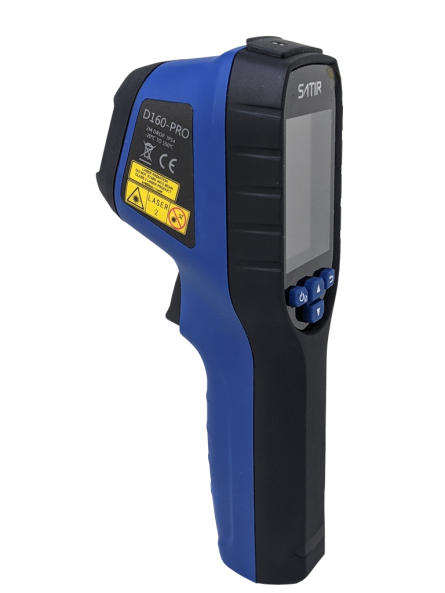

The D-160 PRO model is distinguished by an easy-to-use interface and the possibility of one-handed operation. Its universality of use make it that it is often used by maintenance engineers, electricians and more. The D-160 PRO model is equiped with the infrared detector (160x120) with working temperature range of (-20 ÷ 550) °C. The long battery life allows you to take temperature measurements all day long.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

E-mail: [email protected]

Do you have a question?
General Contact Form

Temperature range

  • (-20 ÷ 550) °C

Specifications

  • Detector Type: UFPA
  • Detector Resolution: 160x120
  • Pixel Size: 17μm
  • FOV/Min. Focus Distance: 50°x38.3°/15cm
  • Spatial Resolution: 5.4mrad
  • Thermal Sensitivity (N.E.T.D): 50mK@25°C,F#=1.0)
  • Spectral range: 8~14μm
  • Focus Length: 3.1mm
  • Focus Type: Fixed
  • Accuracy: ±2°C or ± 2% of readings
  • Image Mode: IR Only
  • LCD Display: 2.4” (320x240)
  • Frame Rate: 25Hz
  • File Format (Thermal): JPEG
  • Image Storage: 8GB Micro SD Card, up to 128GB Optional
  • Power Interface: Micro USB Direct Charge
  • Battery Type: Rechargeable Li-ion Battery
  • Battery Life: 8 Hours
  • Weight: 350g including battery
  • Dimensions: 96x78x59mm
