Description

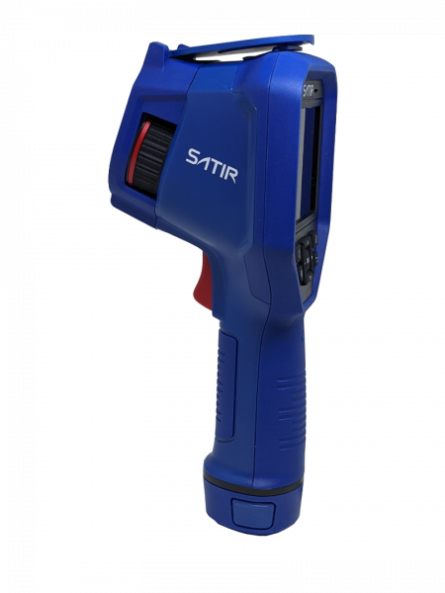

The i-series thermal cameras from the SATIR with thermal detector working in two resolutions: 384x288 for the i-384 model and 160x120 for the i-160 model. Each model is designed for temperature measurement with a (-20 ÷ 550) °C of temperature range. Cameras are equipped with a touchscreen that allows you to use the full range of measuring functions. The wi-fi connection allows you to connect the camera with your smartphone.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

E-mail: [email protected]

Do you have a question?
General Contact Form

Temperature range

  • (-20 ÷ 550) °C

Specifications

  • Detector Type: UFPA
  • Detector Resolution: 160x120 (i-160); 384x288 (i-384)
  • FOV: 25°x19° (i-160); 37,5°x28,5° (i-384)
  • Thermal Sensitivity (N.E.T.D): 50 mK przy 25°C,F#=1.0)
  • Focal Length: 6,7 mm (i-160); 9,7 mm (i-384)
  • Android App
  • Accuracy: ±2 °C lub ±2 %
  • Spectral Range: 8~14 μm
  • Digital Zoom: 1x, 2x, 4x
  • Laser Pointer: TAK
  • Storage: 16 GB (i-160); 64 GB (i-384)
  • Encapsulation: IP54
  • Battery Type: Rechargeable Lithium Battery
  • Interface: Type-C
  • Weight: <660 g
  • Dimensions: 244x100x104mm
