Welding Adapters MP, MS

generate code

Description

Adapter is a part of measuring installation (especially of pipelines), where a sensing element (temperature sensor) is installed by means of threaded connector. Selection of parameters and design depends on measuring installation conditions. It is manufactured in accordance with individual client requirements.

Files

Catalog card

Contact with a consultant

Telephone: 18 330 10 05

Fax: 18 330 10 04

E-mail:

Do you have a question?

General Compatible devices Contact form

Characteristic

material: stainless steel 1.4541, carbon steel 15 HM
dimensions thread D: M20x1,5mm, G½
length L [mm]: 50÷200

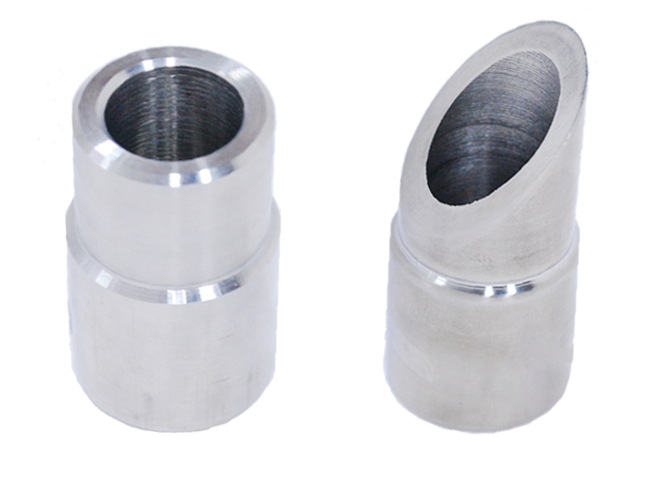

type straight: MP, slanted (45°): MS

Compatibility device

Protection tube can work with measuring devices (head sensors) and transmitters.

Temperature sensors

For details see: “temperature sensors"

Contact form

Required field

I agree to the processing of my personal data by Limatherm Sensor Sp. z o.o. ; Skrudlak 1 street, 34-600 Limanowa, in accordance with the Act of August 29, 1997 on the protection of personal data (i.e. Journal of Laws 2002 year No 101, pos. 926) Required field

Welding Adapters MP, MS

Description

Files

Contact with a consultant

Contact form

Generate the code by selecting the parameters below

Type of welding adapters

Thread dimension

Thermowel lenght

Thermowell material
