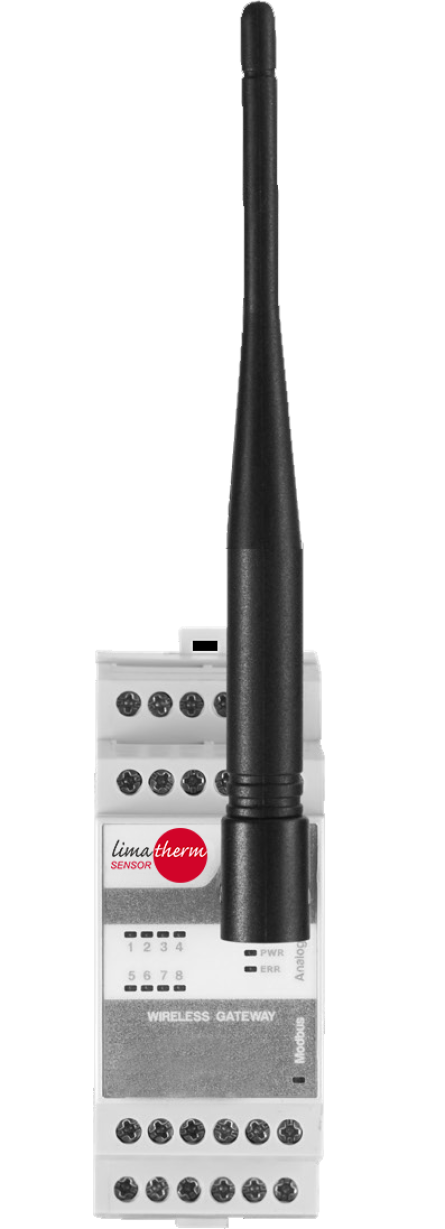

Receiver LIM-RE410

generate code

Description

LIM-RE410 can works with up to 16 LIM-TRE401 transmitters. It is equipped with 8 analog outputs (4 ÷ 20) mA and a single RS485 digital output.

Files

Catalog card

Contact with a consultant

Telephone: +48 18 3301006

Fax: -

E-mail: [email protected]

Do you have a question?

General

Characteristic

works with up to 16 LIM-TR401 transmitters
network scan time every 1s.
RS485 interface with MODBUS RTU protocol
8 analog outputs (4 ÷ 20) mA
current analysis of the battery status and signal level of the transmitter
DIN raild mounting
operating range: up to 4 km

Technical specification

frequency 868 MHz
power 0 - 27 dBm
input/output impedance 50 Ω
(12 ÷ 24) V DC; current consumption 70 mA/12 V; 45 mA/24 V
