Description

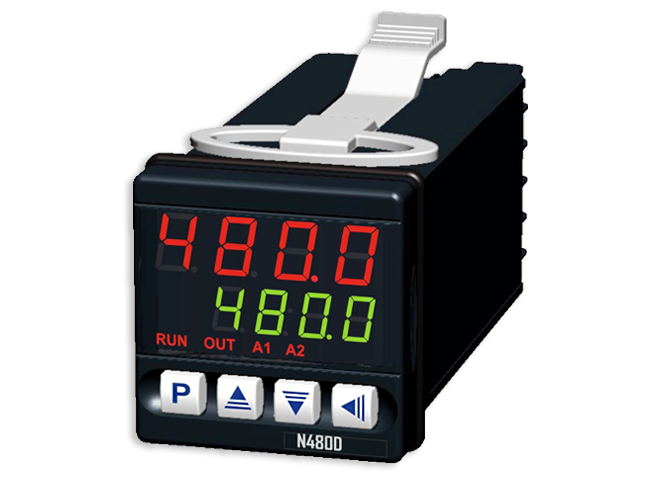

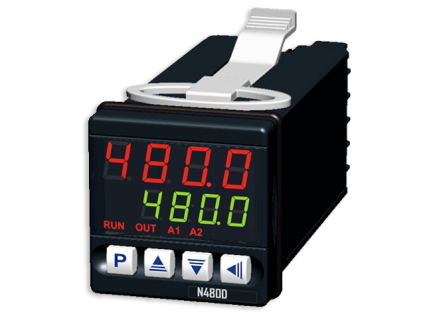

The most popular Limatherm Sensor temperature controller. It has a universal input suitable for most common thermocouple sensor as well as Pt100. Low or standard 230V power supply can be selected. Up to 3 outputs programmed as alarm or control outputs, including SSR or 4÷20mA (control) output. Two displays: upper red colour presents temperature of process; lower green colour presents set temperature. Black enclosure, anti-reflection coating and clear indication. Degree of protection of front panel IP65. There is a possibility to block the access to specified parameters via software as well as device blocking by means of jumper.
Files
Catalog card
General
Compatible devices
Additional accessories
Contact form
Characteristic
- programmable temperature controller
- 4 digit dual LED display
- PID control; ON/OFF contro
- auto-tuning
- sensor failure detection
- front panel: IP65
Specification
-
universal input: TC/RTD/NTC
- output: 3x relay, SSR
- power supply: 230V AC, 24V DC / AC ±10%
- dimensions: 48 × 48 × 110; cut-out 45,5 × 45,5 mm
- additgional features: control output 4÷20mA
