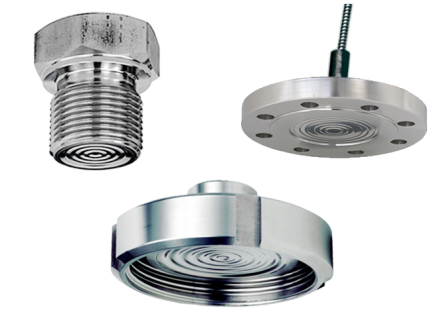

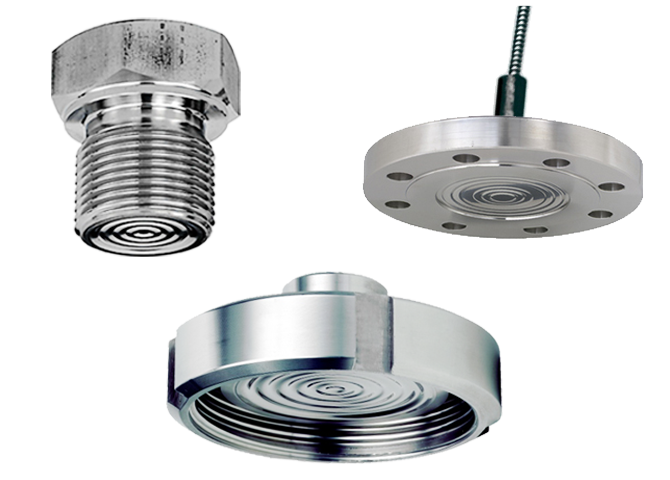

HIGH-PRESSURE DIAPHRAGM SEPARATOR
Technical data:
- application in processes with high pressure ranging from 0...16 bar up to 0...600 bar.
- mounting with bourdon tube pressure gauges or pressure transmitters.
- fully stainless steel construction.
Parts in contact with the medium:
- diaphragm made of stainless steel.
Process connection:
- with coupling acc. to DIN 11 851.
- male thread, SMS type.
- clamp type.
PRESSURE SEPARATOR WITH SANITARY CONNECTION
Technical data:
- application in processes where a high level of cleanliness as well as easy assembly and disassembly are required.
- mounting with bourdon tube pressure gauges or pressure transmitters.
- stainless steel 1.4571 construction.
Parts in contact with the medium:
- diaphragm made of stainless steel 1.4571 welded to the housing.
Process connection:
- with coupling according to DIN 11 851.
- male thread, SMS type.
- clamp type
FLANGED PRESSURE SEPARATOR 990.27
Technical data:
- mounting with bourdon tube pressure gauges or pressure transmitters.
- stainless steel 1.4571 construction.
- application in processes with pressures of 25 mbar and higher.
Parts in contact with the medium:
- diaphragm made of stainless steel 1.4571 welded to the housing.
Process connection:
- flange DN from 15 to 125
We manufacture non-standard versions meeting unusual and specific user requirements.
Compatible devices
Valves can be used together with devices such as thermometers and pressure gauges
| Pressure gauges |
 |
For additional information, please refer to sensors: “pressure gauges”
