Description

Temperature sensor in Alnico type magnet suitable for measurement of steel surfaces. Magnet application enables quick and easy installation of sensor on steel surface where temperature is to be measured.

Files

pdf icon Catalog card pdf icon Manual / DTR

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?

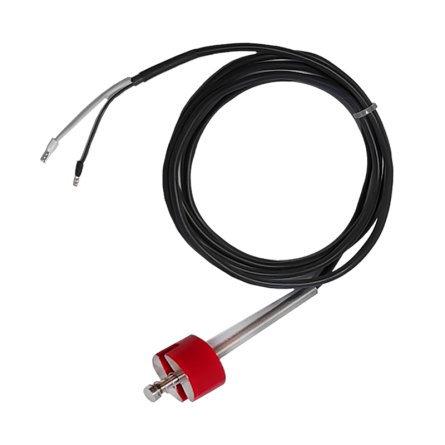

product image
General Compatible devices Cables Additional accessories Contact form

Temperature range

  • (-50 ÷ 400) ºC     Pt100    kl. B
  • (-50 ÷ 250) ºC     Ni100
  • (-40 ÷ 400) ºC     J, K       kl. 2



Specification

  • mounting: Alnico
  • max. working temperature: 450 °C (above 180 °C the paint coat is burnt out)
  • sensor sheath mounted with magnet
  • material: stainless steel 1.4541
