Description

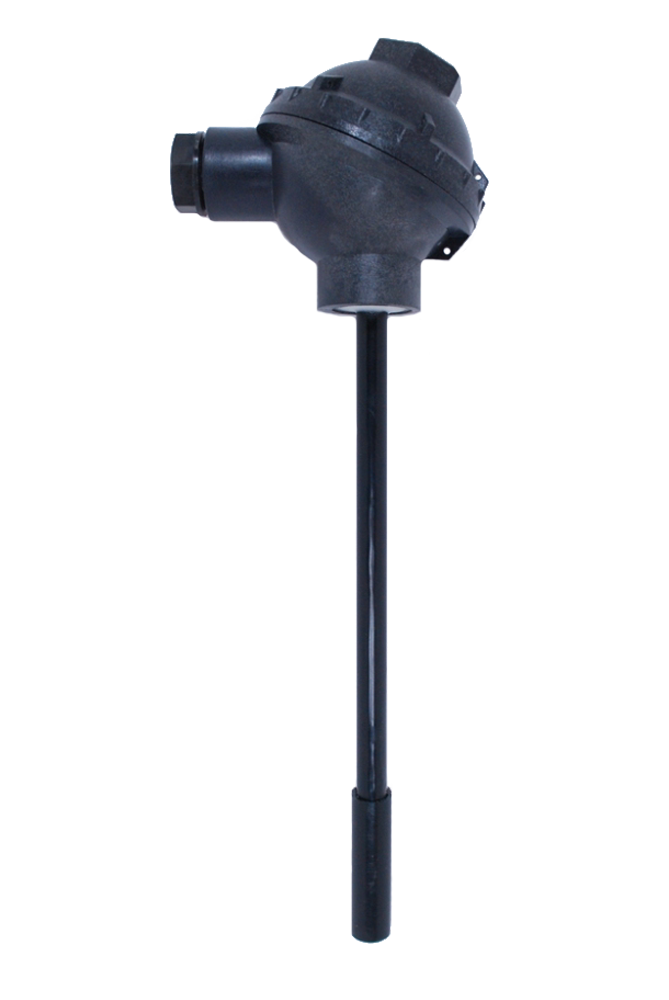

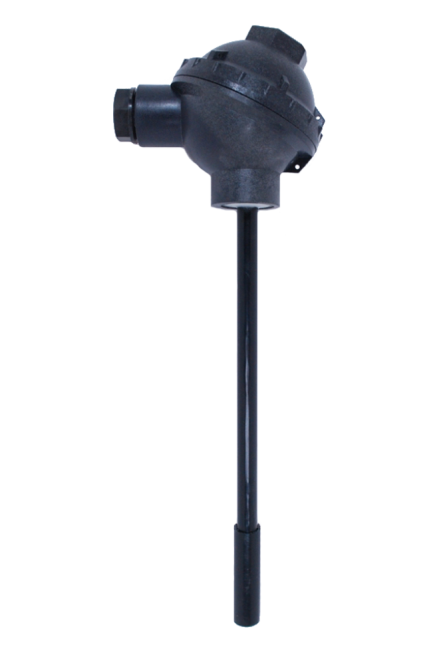

Temperature sensor suitable for measurement of aggressive liquid and gaseous media, especially in chemical industry, galvanizing plants, etc.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Compatible devices
Additional accessories
Contact form
Temperatura range
- 0÷100ºC RTD
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor
- stranded Cu wire 2 or 4x0,22 mm2 with double tefl on insulation
- connection head type NS, IP54, -30÷130ºC
- sheath material: acid-resistant steel 1.4541 hielded with heat-resistant PVC
Mounting
Connection heads
Connection head type NS in standard.
Possibility to mount the connection head of a different type.
| NA |
|
|
For details see "connection heads”
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters heads | Compensations Cable | Plugs and Sockets |
|
|
|
|
For details see: “transmitters”, "plug and sockets", "compensation cables"
