Description

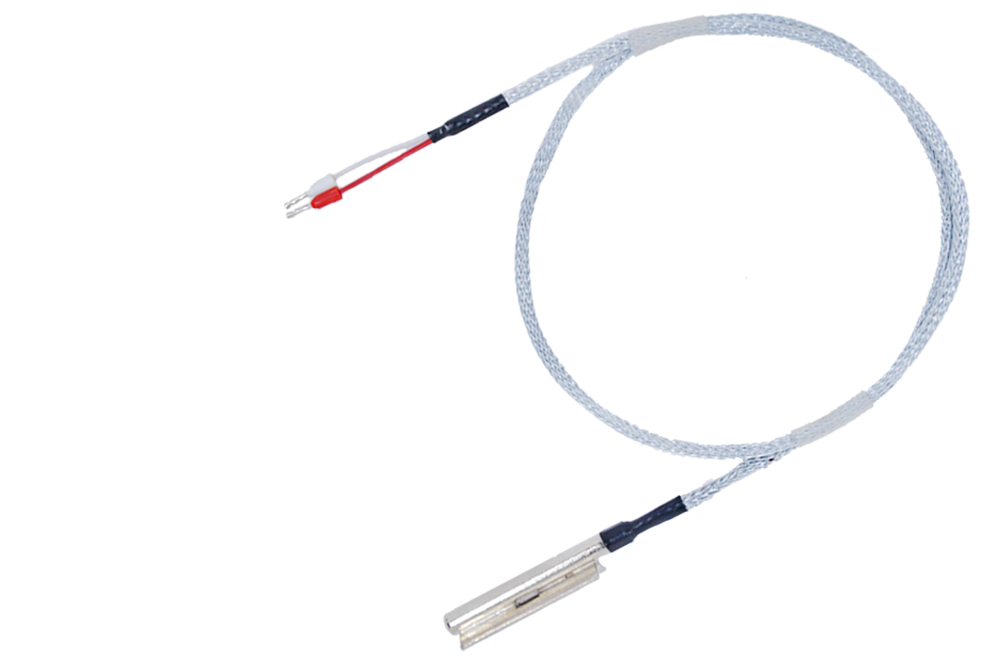

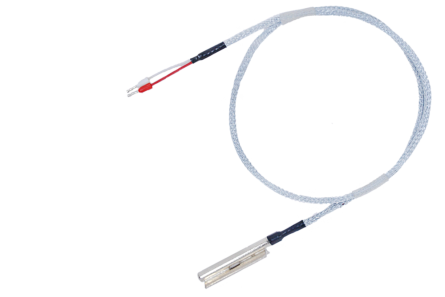

Temperature sensor suitable for measurement of pipes and shafts. Rigid (pipe) sheath is joined to radiator enhancing the area of heat reception. Sensor has a band clamp that enables permanent radiator installation on pipe or shaft. Temperature sensor has ATEX approval for application in hazardous area: II 2G Ex ia IIC T6 II 2D Ex ia IIIC T85°C
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -40÷400ºC Pt100
Specification
- radiator enhancing surface of heat reception
- band clamp for mounting on a pipeline
- sheath material:brass
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Connecting cables
Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.
| Silicone insulated wire | Fiberglass insulated wire with braid | Silicone insulated wire |
|
|
|
|
| PVC insulated wire with steel armour | Silicone insulated wire with inner shield | Teflon insulated wire |
|
|
|
|
For details see: "compensation cables"
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters heads | Compensations cable | Plugs and Sockets |
|
|
|
|
For details see: “transmitters”, "plug and sockets", "compensation cables"
