Description

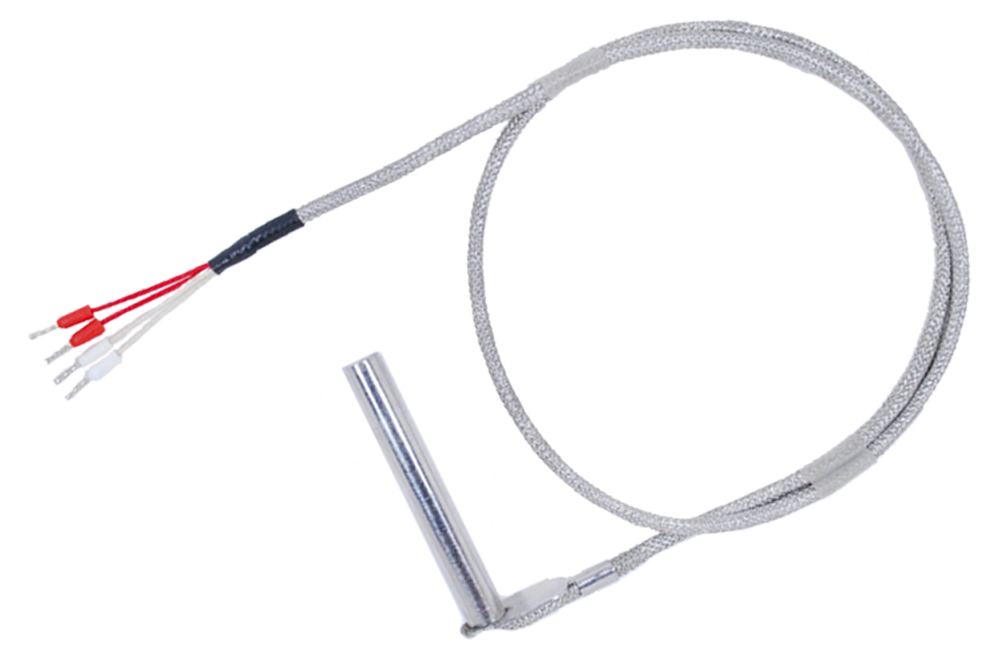

Temperature sensor suitable for measurement in district heating substations. Applicable for temperature measurement of liquid and gaseous media in high pressure conditions. This sensor consists of sensing element placed in the thin-walled acid-resistant sheath with connector and flexible lead wire. Temperature sensor has ATEX approval for application in hazardous area: II 2G Ex ia IIC T6 II 2D Ex ia IIIC T85°C
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -40÷550ºC Pt100
- -40÷1000ºC K
- -40÷700ºC J
Specification
- standard (pipe) execution
- mineral insulated execution with sleeve
- Exi acc. to ATEX
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Connecting cables
Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.
| Silicone insulated wire | Fiberglass insulated wire with braid | Silicone insulated wire |
|
|
|
|
| PVC insulated wire with steel armour | Silicone insulated wire with inner shield | Teflon insulated wire |
|
|
|
|
For details see: "compensation cables"
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters heads | Compensations cable | Plugs and Sockets |
|
|
|
|
For details see: “transmitters”, "plug and sockets", "compensation cables"
