Description

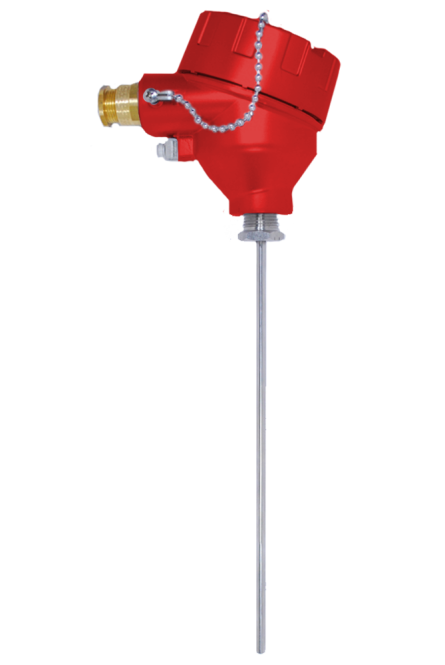

Temperature sensor suitable for measurement of liquid and gaseous media. Temperature sensor has ATEX approval for application in hazardous area: I M2 Ex d I Mb (with connection head NS) II 2G Ex d IIC T6 Gb II 2D Ex t IIIC T85ºC Db IP66
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -200÷550ºC RTD
- -40÷700ºC J
- -40÷900ºC K
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
-
aluminium:
XD-AD (AS1 – one cable gland, AS2 – two cable glands) -
aluminium, cover with window:
XD-ADwin (AS3 – one cable gland, AS4 – two cable glands) -
stainless steel:
XD-SD (NS1 – one cable gland, NS2 – two cable glands) - sheath material: acid-resistant steel 1.4541, 1.4571, 2.4816
-
cable gland: ATEX II 2 GD; ATEX I M2; IP 66÷68
cable diameter: 3÷14,3 mm (standard 6,1÷11,7) - Exd acc. to ATEX
Mounting
Connection heads
Connection head type XE-DANA in standard.
Possibility to mount the connection head of a different type.
| XD-AD | XD-ADwin | XD-SD |
|
|
|
|
For details see: "connection heads"
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters | Welding adapters | Displays |
|
|
|
|
| Plugs and Sockets | Compensation cables | Protection Tubes |
|
|
|
|
For details see: “transmitters”, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
