Description

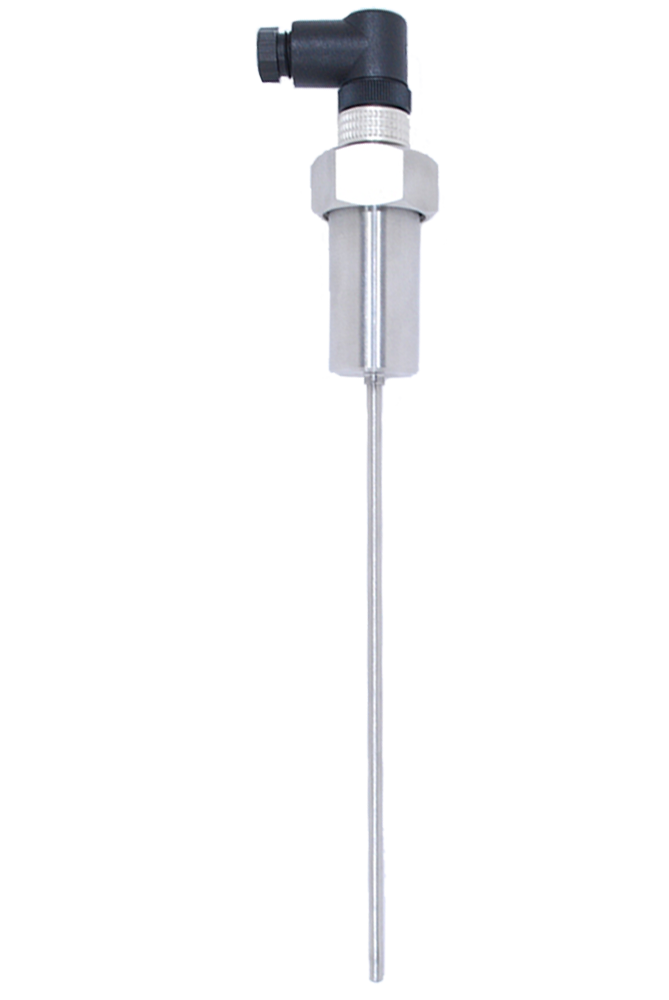

Sensor suitable for temperature measurement in district heating substations. Applicable also for temperature measurement of liquid and gaseous media in high pressure conditions. This sensor consists of resistor placed in the thin-walled acid-resistant sheath connected to flexible lead wire.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Cables Additional accessories Contact form

Temperature range

  • -200÷250ºC        Pt100
  • -50÷250ºC          Ni100



Specification

  • operating temperature -30÷85°C
  • screwed plug M12-4 pin – IP67
  • material: stainless steel 1.4541

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.

There is a possibility to use lead wire of different type.

Some applications require the use of additional accessories suitable for their individual requirements.
