Description

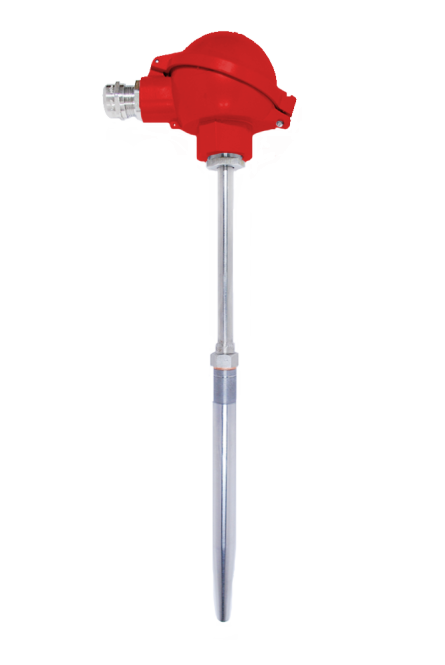

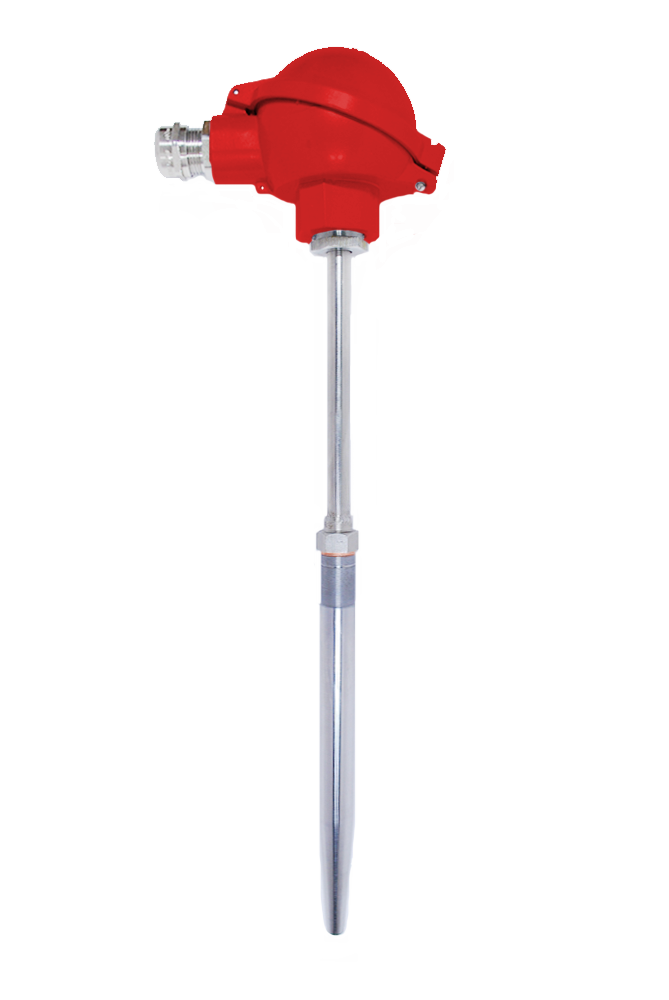

Temperature sensor suitable for measurement of liquid and gaseous media. It has a replaceable measuring insert adequate for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert ensures an excellent connection with the bottom of the sensor thermowell. Temperature sensor has ATEX approval for application in hazardous area: I M1 Ex ia (with connection head N1) II 1/2G Ex ia IIC T6 II 1/2D Ex ia IIIC T85°C cable gland II 2GD Ex eb IIc, Ex ta IIIC (for the cable 5÷10mm)

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection heads Compatible devices Additional accessories Contact form

Temperatura range

  • -200÷550ºC      RTD
  • -40÷550ºC        TC



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • process connection with G1/2 or M20x1,5 thread
  • connection head type aluminium XE-DANA (S1-standard), XE-DAND (S2),
    XE-DANAW (W1), XE-DANDW (W2) or stainless XE-BE (N1), IP65
  • sheath material: boilert steel 1.4541
  • cable gland ATEX II GD IP65 (for cable 5÷10 mm)
  • Exi acc. to ATEX



Mounting



Connection heads

Connection head type XE-DANA in standard.
Possibility to mount the connection head of a different type.

XE-DANA XE-DAND XE-DANAW

XE-DAND XE-BE


For details see: "connection heads"

Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders


For details see: indicators,controllers, “data loggers”

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Transmitters Welding adapters Displays

Plugs and Sockets Compensation cables Protection Tubes


For details see: transmitters, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
