Description

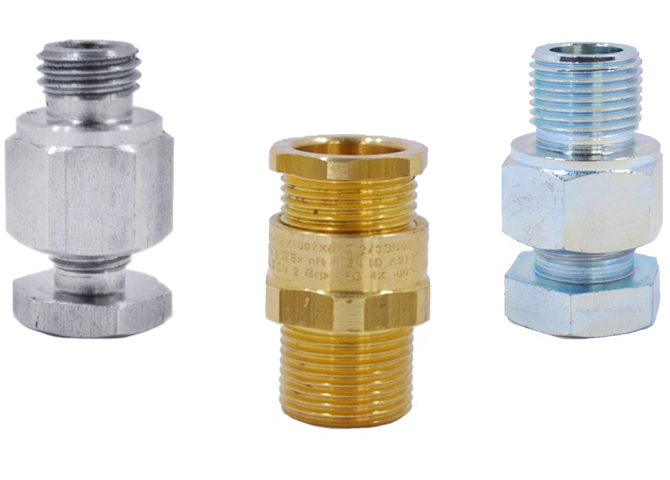

Compression fittings and mounting brackets are used as the additional accessories for temperature sensors without threaded fittings and flanges. Used for sensor mounting in place of measurement, they allow immersion length adjustment since they can be mounted anywhere along the sheath. Compression fittings assure an excellent seal up to 0,1 Mpa.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Compatible devices
Contact form
| UG-1 compression fitting | ||
| Material: zinc-plated steel A10 | ||
| Seal: ceramic rope | ||
| Type | Thread | d (mm) |
| UG-1-6 | M16x1,5 | 6,0 |
| UG-1-8 | M16x1,5 | 8,0 |
| UG-1-12 | M20x1,5 | 12,0 |
| UG-1-15 | M24x2 | 15,0 |
| UG-1-20 | M30x2 | 20,0 |
|
UG-3 compression fitting |
||
| Material: stainless steel 1.4541 (1H18N9T) | ||
| Seal: stainless steel ring 1.4541 | ||
| Type | Thread | d (mm) |
| UG-3-1; 1,5; 2 | M8x1 | 1; 1,5; 2.0 |
| UG-3-3 | M10x1 | 3,0 |
| UG-3-45 | 4,5 | |
| UG-3-6 | 6,0 | |
| UG-3-8 | M12x1 | 8,0 |
| UG-8 compression fitting | ||||
| Material: stainless steel 1.4541 (1H18N9T) | ||||
| Seal: stainless steel ring 1.4541 | ||||
| d (mm) | D | L (mm) | l (mm) | SW |
| Ø6 |
M20x1,5 G½ |
50 | 15 | 30 |
| Ø8 | ||||
| Ø10 | ||||
| Ø12 | ||||
| Ø14 |
M27x2 G¾ |
55 | 20 | 36 |
| Ø15 | ||||
Compatibility device
Mounting fittings can work with measuring devices (head sensors) and transmitters.
|
Temperature sensors |
|
|
For details see: “temperature sensors"
