Description

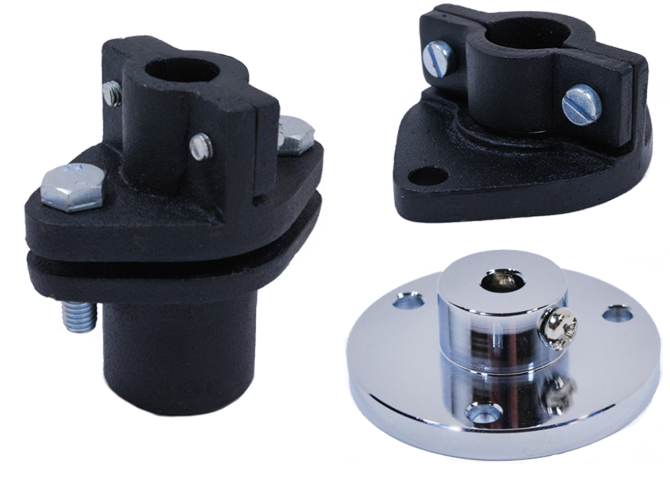

Compression fittings and mounting brackets are used as the additional accessories for temperature sensors without threaded fittings and flanges. Used for sensor mounting in place of measurement, they allow immersion length adjustment since they can be mounted anywhere along the sheath. Compression fittings assure an excellent seal up to 0,1 Mpa.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Compatible devices
Contact form
| UZ-11 mounting bracket | |||
| Material: flange I – cast steel L II 600, flange II – steel St3S | |||
|
Seal: tefl on ring PTFE – up to 200°C in air Option: ceramic rope – up to 650°C in air – type UZ-11T |
|||
| Type | L (mm) | d (mm) | D (mm) |
| UZ-11-15 | 55 | 16 | 35 |
| UZ-11-22 | 70 | 23 | 40 |
| UZ-11-32 | 70 | 33 | 50 |
|
UZ-21 mounting bracket |
|||
|
Material: flange I – cast steel L II 600 clamping ring – cast steel L II 600 |
|||
| Typ |
Sheath diameter (mm) |
L (mm) | d (mm) |
| UZ-11-15 | 55 | 55 | 16 |
| UZ-11-22 | 70 | 70 | 23 |
| UZ-11-32 | 70 | 70 | 33 |
| UZ-11-32 | 70 | 70 | 29 |
| UZK-1 flanged fitting | |||
| Material: aluminium (nickel plated) | |||
| Mounting: screw | |||
| For tube d [mm] = 6, 8 |
Compatibility device
Mounting fittings can work with measuring devices (head sensors) and transmitters.
|
Temperature sensors |
|
|
For details see: “temperature sensors"
