Description

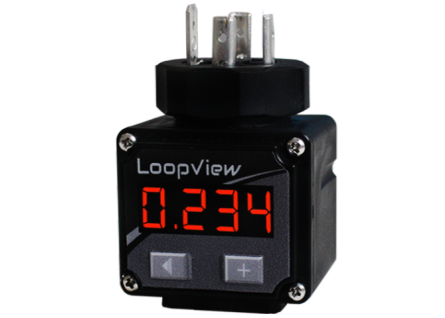

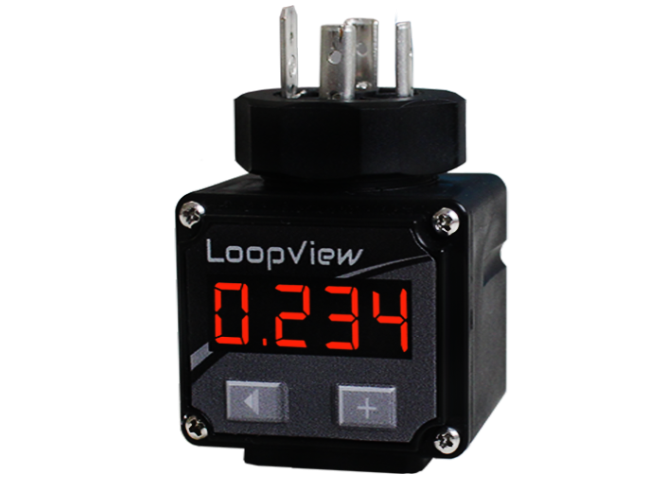

LoopView is a two-wire (4 ÷ 20) mA loop indicator, loop powered and low power. Its excellent precision allows to indicate several measurements like pressure, differential pressure, flow, pH, temperature, acceleration and other. It has valve type connector standard EN 175301-803 (old DIN 43650) male and female. LoopView is powered by the current loop itself and allows to be inserted into sensors already installed in industrial facilities, with same connector type.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Contact form
Characteristic
- connector standard EN175301-803 (DIN 43650)
- 4-digit red LED display with adjustable indication
- access to password-protected configuration
- case: ABS (Gasket in Polyurethane), mechanic protection: IP65, NEMA4X
Specification
- input: (4 ÷ 20) mA resolution of measurement 16 bit
- resolution on indication: -1999 ÷ 9999
- accuracy: 0,5% of span
- power supply: loop (4 ÷ 20) mA, max. current loop 60 mA
- dimensions: 65x45x45 mm
-
weight: 54 g
