Description
Plugs and socket are components of measuring systems used for connection of temperature sensors with a measuring device such as controller, temperature indicator or recorder. They are also used for connections and extensions measuring lines.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Plugs and Sockets
Compatible devices
Contact form
|

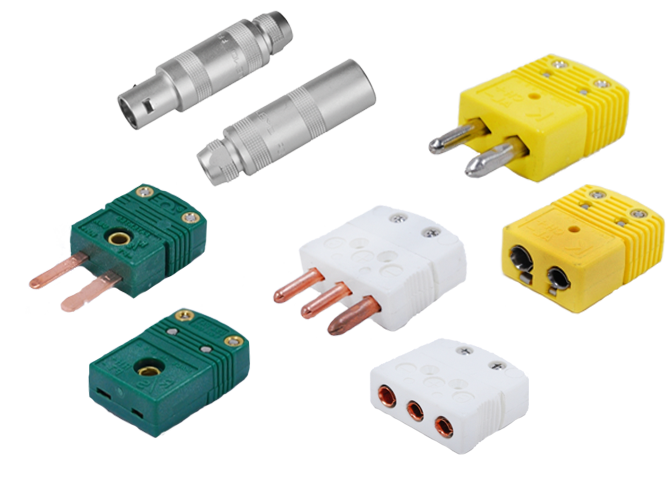

Plug STD-W-...* | Socket STD-G-...* – standard plug and socket for thermocouple sensors – operating temperature: -20÷200ºC – lead wire diameter max: 8 mm – thermocouple type: J, K, N, R, S, T, B, E * required type of thermocouple |

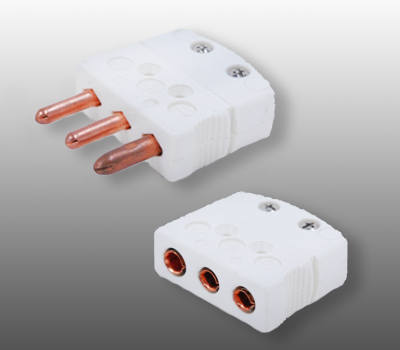

Plug STDC-W-...* | Socket STDC-G-...* – ceramic plug and socket for thermocouple sensors – operating temperature: 0÷650°C – lead wire diameter max: 8 mm – thermocouple type: J, K, N, R, S, T, B, E * required type of thermocouple |
|
Plug STD3-W-...* | Socket STD3-G-...* – standard plug and socket for thermocouple sensors – operating temperature: -20÷200°C – lead wire diameter max: 8 mm – for RTD resistors * 2 or 3-wire line |
Plug MIN3-W-...* | Socket MIN3-G-...* – miniature plug and socket for RTD sensors – operating temperature: -20÷200ºC – lead wire diameter max: 4,5 mm – for RTD resistors * 2 or 3-wire line |
|
Plug MINC-W-...* | Socket MINC-G-...* – plug and socket for thermocouple sensors – operating temperature: 0÷650°C – lead wire diameter max: 4,5 mm – thermocouple type: J, K, N, R, S, T, B, E * required type of thermocouple |

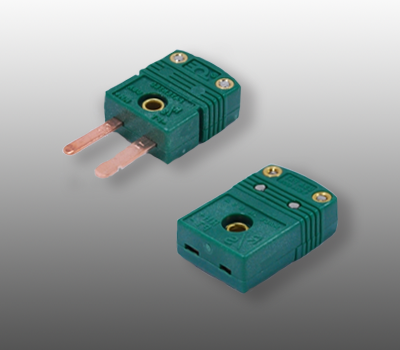

Plug MIN-W-...* | Socket MIN-G-...* – miniature plug and socket for thermocouple sensors – operating temperature: -20÷200ºC – lead wire diameter max: 4,5 mm – thermocouple type: J, K, N, R, S, T, B, E * required type of thermocouple |
|

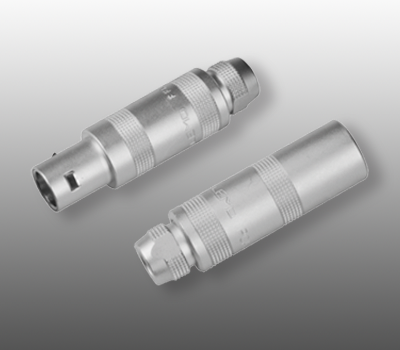

Plug FFA....* | Socket PCA....* – LEMO plug and socket – operating temperature: -50÷250ºC – lead wire diameter max: 4,4 mm (0S), 6,7 mm (1S), 8,5 mm (2S), 10,5 mm (3S) – apply to thermocouples and RTDs * required type: 0S, 1S, 2S or 3S |
Plugs and Sockets
| Standards | Miniature | LEMO |
|
|
|
|

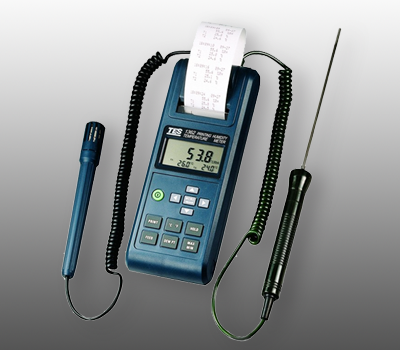

Cooperating devices
Temperature sensors can cooperate with the controlling devices registering parameters of controlled process.

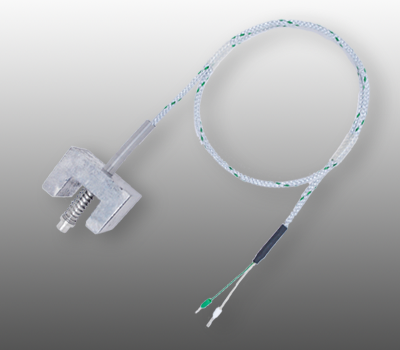

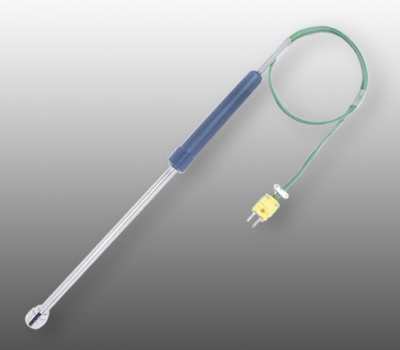

| Mineral insulated sensors | Thermometers | Wired sensors |
|
|
|
|
For details see: “mineral insulated sensors”, “thermometers”, “wired sensors”
