Description

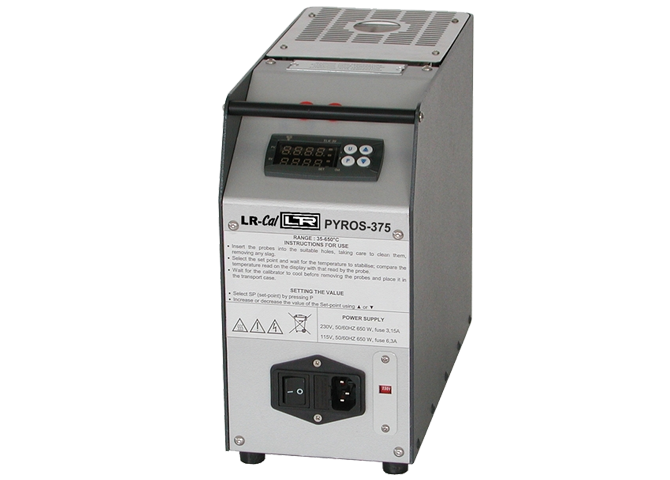

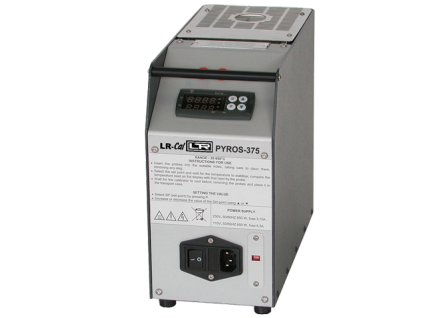

The Pyros-375 calibration furnace is used to check and calibrate thermoelectric and resistance sensors in the range from ambient temperature to 375 ° C. It has a well with a diameter of ø25 mm and a depth of 150mm, in which replaceable measuring blocks can be mounted. Standard measuring block has holes ø3.2; 4.8; 6.4; 11.1 mm. If there is a need to calibrate sensors with other non-standard diameters, it is possible to make an additional measuring block, or to select an appropriate one according to the catalog card. Additionally, it can be equipped with a waterproof case (IP65) or a transport case.
