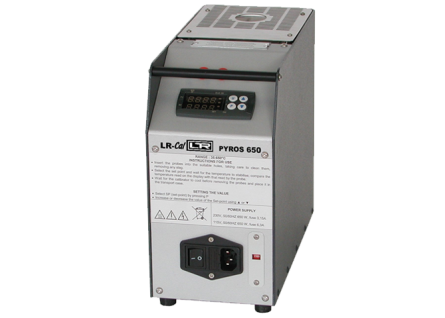

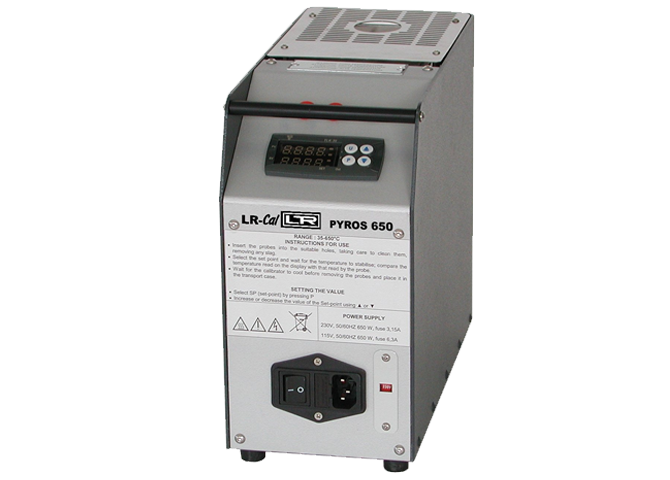

Calibration furnace PYROS-650

The Pyros-650 calibration furnace is used to check and calibrate thermoelectric and resistance sensors in the range from ambient temperature to 650 ° C. It has a well with a diameter of ø25 mm and a depth of 150 mm, where a measuring block with standard holes ø3.2 is permanently installed; 5.0; 6.5; 9.5 mm, if there is a need to calibrate sensors with other non-standard diameters, it can be done by making an appropriate measurement insert, mounted in the ø15.7 mm block hole, which works with a special measuring block -INS-1, or selecting the appropriate INS type block -1 or INS-2.
