Description

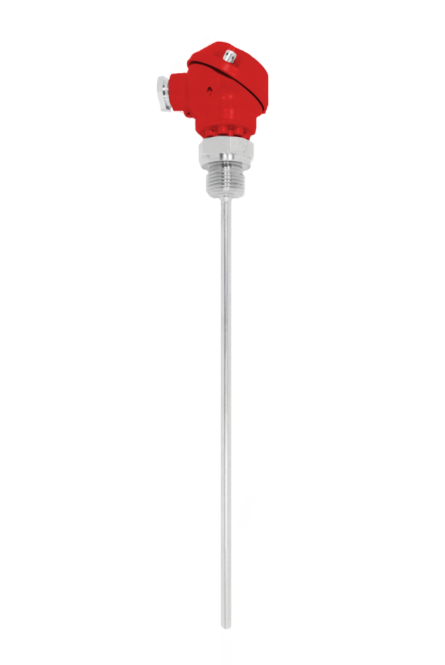

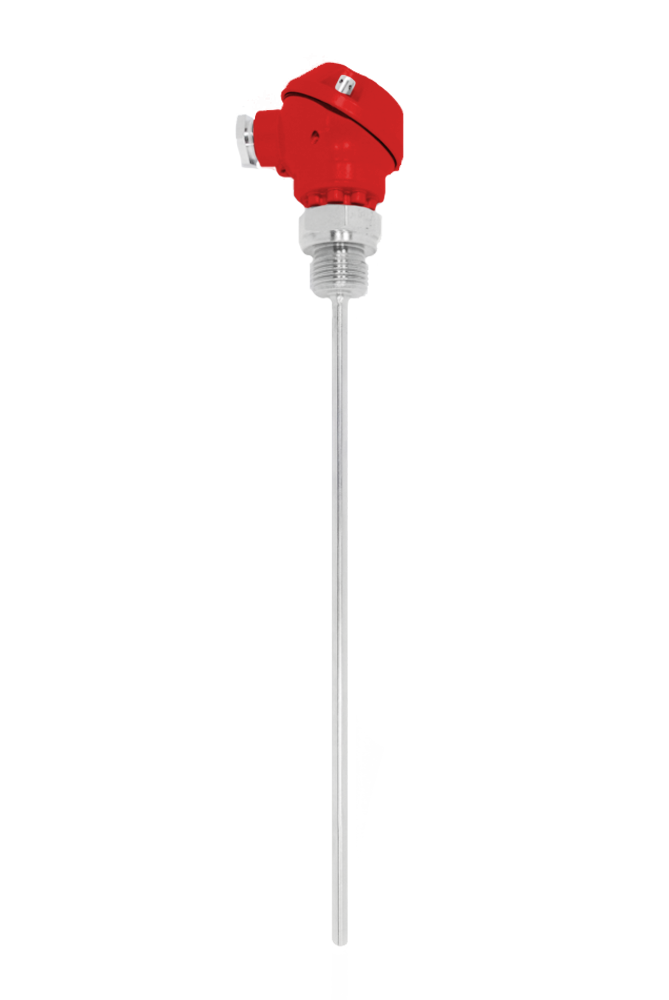

Temperature sensor applied in industrial pipelines, pressure and other tanks for temperature measurement of liquids and gases. Sensing element is placed directly in the thermowell.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection heads Cooperating devices Additional accessories Contact form

Temperatura range

  • -200÷150ºC      RTD
  • -40÷150ºC        TC



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • process connection with G1/2 or M20x1,5 thread
  • connection head type MA IP54 - 40÷100ºC
  • sheath material: acid-resistant steel 1.4541
  •  temperature transmitter can be mounted in a connection head



Mounting



Connection head type MA in standard.

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Some applications require the use of additional accessories suitable for their individual requirements.
