Description

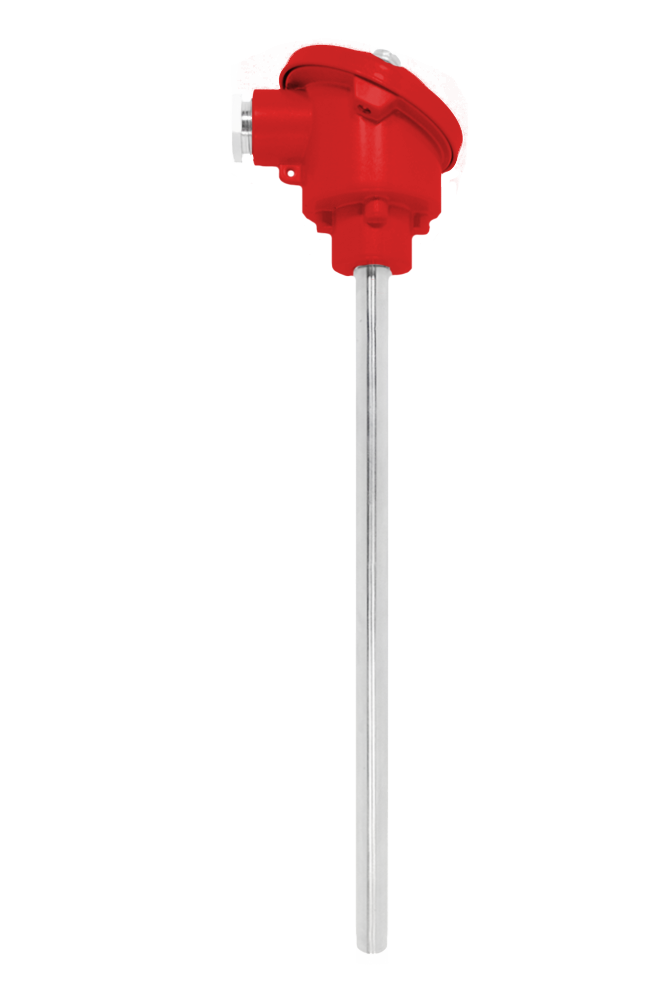

Temperature sensor suitable for measurement of industrial processes. Sensing element is placed directly in the sheath.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Cooperating devices
Additional accessories
Contact form
Temperatura range
- -200÷600ºC RTD
- -40÷600ºC TC
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- connection head type BA IP55, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
Mounting
Connection head type BA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
