Description

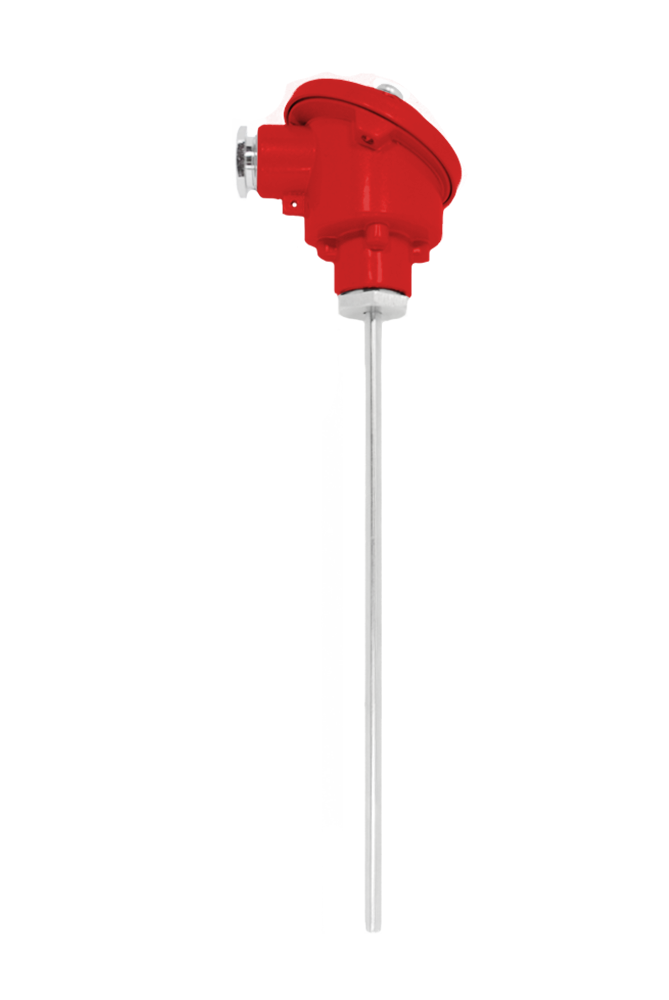

This sensor is used for temperature measurement of liquid and gaseous media. The temperature sensor design (replaceable measuring insert) is suitable for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert ensures an excellent connection with the the bottom of the sensor thermowell.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection head Cooperating devices Additional accessories Contact form

Temperatura range

  • -200÷550ºC      RTD
  • -40÷700ºC             J
  • -40÷900ºC             K



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • process connection with G1/2 or M20x1,5 thread
  • connection head type BA IP55, - 40÷100ºC
  • sheath material: acid-resistant steel 1.4541
  •  temperature transmitter can be mounted in a connection head
  • measuring insert: pipe or mineral insulated version



Mounting



Connection head type BA in standard.

Possibility to mount the connection head of a different type.

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Some applications require the use of additional accessories suitable for their individual requirements.
